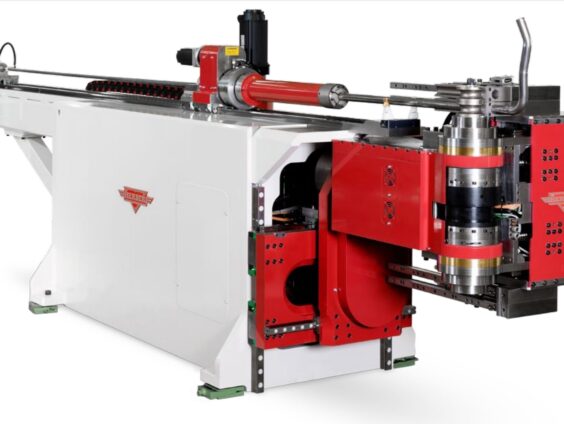

HERBER — 750RL All electric 9-axis Right/Left CNC Tube bending machine
Herber CNC-machine 700S is optimized for tubes OD 6–55 mm.
Maximum clearance around the bending head and the automatic tool changer make it possible to bend complex shapes without intermediate tool changes.
| Technical specifications/Herber 750 RL | |
| Capacity, Ø mm | 57 x 2 mm |
| Radius, min/max | 25/250 mm |
| Radius difference | 80 mm |
| Bending speed/repeatability | 200º/s. ±0,05° |
| Length of mandrel | 1000 – ∞mm |
| Weight, kg | 2800 kg |
| Machine dimensions | 3,0 × 1,6 × 1,5 m |
| Tube rotation | 0–360°/sec |
| Length feeding | 0–2100 mm/sec |
| Degree of Tolerance | 0,05°/mm |
